5W 3hour duration time 20-60Vdc Non-maintained emergency pack with Self Test & Manual Test Switchable

Brand Name : Merrytek

Model Number : KE023-05AM180HE

Certification : CE, UKCA, UN38.3, MSDS

Place of Origin : China

MOQ : 100

Price : Negotiation

Payment Terms : T/T or Western Union

Supply Ability : 10,000pcs per month

Delivery Time : 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.

Packaging Details : Packed in bubble bag firstly, and then reinforced with carton for outer packing

Rated Input Voltage : 220-240Vac 50Hz /60Hz

Emergency power : 5W

Emergency Time : 3 hours

Warranty : 5 Years( battery included)

Load output voltage : 20-60Vdc

Working temprature : 0℃~50℃

IP Rating : IP20

Battery type : LifePO4 6.4V 3600mAh

Contact Now

5W 3hour duration time 20-60Vdc Non-maintained emergency pack with Self Test & Manual Test Switchable
Product Overview

Constant power output LED emergency power supply with a wide output voltage range, featuring input relay switching and comprehensive protection functions.

Key Features
  • Constant power output with wide voltage range (20-60VDC)
  • Input relay switching technology
  • Multiple protection functions: battery overcharge, over-discharge, and output short circuit protection
  • Switchable between Self Test and Manual Test modes
Technical Specifications
Charge Parameters
Parameter KE023-05AM180HE
Rated input voltage 220-240Vac 50Hz /60Hz
Rated input current 0.06A Max. @230Vac
Input inrush current 10A(twidth=100uS 50% Ipeak )@230Vac(Cold start at full load)
Power factor ≥0.5@230Vac
Input power <4W
Battery charging current (Max) 350mA
Battery charging time 24 hours Max.
Emergency Parameters
Parameter Specification
Operating mode Emergency mode
Load type LED
Emergency power 5W
Emergency time 3 hour
Load output current 250-80mA
Load output voltage 20-60VDC
Battery Specifications
Li-ion battery 6.4V 3600mAh (capacity meets emergency time at 25℃)
Battery warranty 5 years
Driver Requirements
Surge current 8A
Input current 3A Max.
Output current 2A
LED Indicator Status
Status Reason Charge Indicator
Battery is fully charged and operational Standard daily use Solid green
Battery Charging Initial Charge/Battery Top Up Flashing green 1 sec on 1 sec off
Auto Test 3 Hours (every 12 months) Periodic self-test Flashing Green 3 sec on 1 sec off
Auto Test 5 Min (every 30 days) Periodic self-test Flashing Green 3 sec on 3 sec off
Duration test fault Failed the 3-hour annual test Flashing Red 0.5 sec on 0.5 sec off
LED fault Not plugged in or damaged/faulty Flashing Red 2 sec on - 2 sec off
Battery Disconnected/Faulty Not plugged in or damaged/faulty Solid red
Protection Features
  • Battery over-charge/deep discharge protection: Yes
  • Output over-voltage protection: Yes
  • Output overload protection: Yes
  • Output short circuit protection: Yes
Operating Environment
Operating temperature/humidity 0℃…+50℃ Humidity; 20%-75%(without condensation)
Storage temperature/humidity -5℃-35℃
Case Max. Temp(Tc) 75℃
Safety & EMC Compliance
Withstand voltage 3000Vac 5mA 60s (Input "L N" - output "SEC+ SEC-")
Safety standard EN61347-1, 60598-2-22, 61347-2-7, 62034
EMC standard EN55015, EN61000-3-2, EN61000-3-3
Battery standard UN38.3
Environmental protection Compliant with RoHS
Certification CE
Physical Specifications
Input/output terminal specification Press terminal, wire diameter: 0.5-0.75mm²
IP rating IP20
Type of protection Class 2
Installation type Built-in installation
Installation dimension 146×30×22.5mm
Weight: Emergency Power Supply 80±5g
Lifespan 5 Year @Ta

All parameters are tested at an input voltage of 230VAC, an environment temperature of 25℃, unless otherwise specified.

Product Dimensions
5W 3hour duration time 20-60Vdc Non-maintained emergency pack with Self Test & Manual Test Switchable

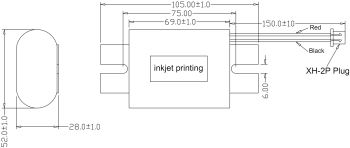

Battery Dimensions
5W 3hour duration time 20-60Vdc Non-maintained emergency pack with Self Test & Manual Test Switchable

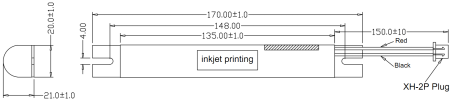

Fig. A
5W 3hour duration time 20-60Vdc Non-maintained emergency pack with Self Test & Manual Test Switchable

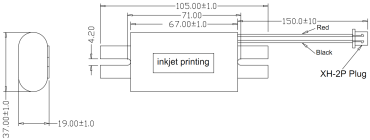

Fig. B
5W 3hour duration time 20-60Vdc Non-maintained emergency pack with Self Test & Manual Test Switchable

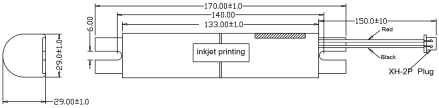

Fig. C
5W 3hour duration time 20-60Vdc Non-maintained emergency pack with Self Test & Manual Test Switchable
Fig. D

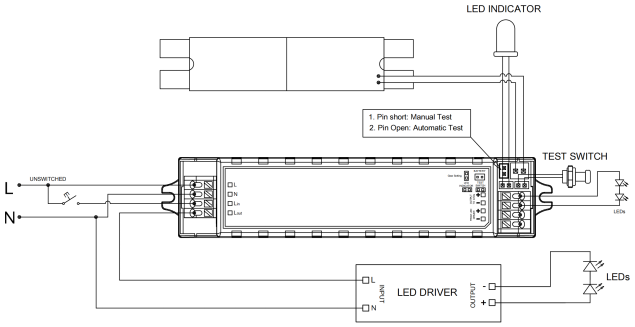

Wiring Diagrams

5W 3hour duration time 20-60Vdc Non-maintained emergency pack with Self Test & Manual Test Switchable

Fig. A

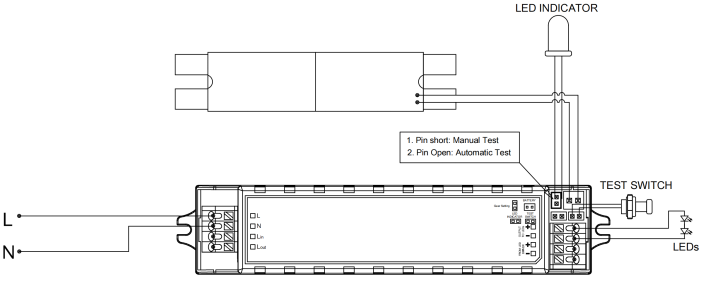

Alternative Wiring

5W 3hour duration time 20-60Vdc Non-maintained emergency pack with Self Test & Manual Test Switchable

Fig. B

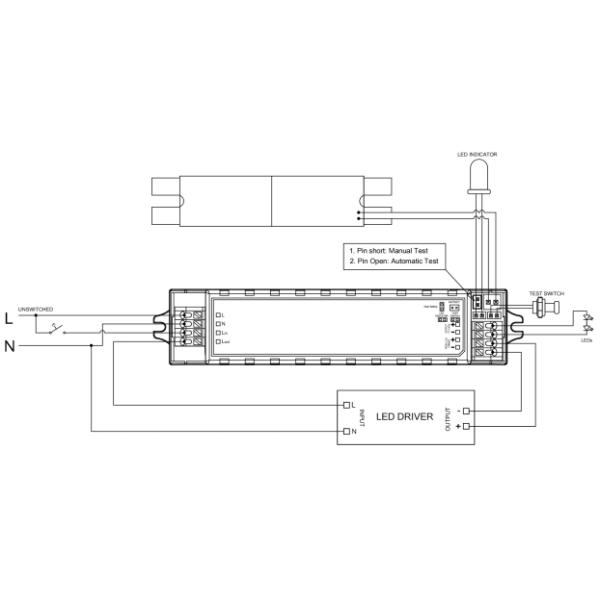

5W 3hour duration time 20-60Vdc Non-maintained emergency pack with Self Test & Manual Test Switchable

Fig. C

5W 3hour duration time 20-60Vdc Non-maintained emergency pack with Self Test & Manual Test Switchable

Fig. D

Test Mode Selection
5W 3hour duration time 20-60Vdc Non-maintained emergency pack with Self Test & Manual Test Switchable
Wire Preparation
5W 3hour duration time 20-60Vdc Non-maintained emergency pack with Self Test & Manual Test Switchable
  • Solid or Stranded wire type: 0.5 - 0.75mm²
  • To access or remove wires from terminals, use a screwdriver to push the buttons down
Manual Test Operation Instructions
  1. Before installation, set Pin short: Manual Test
  2. Connect the wire according to the wiring diagram
  3. L, N power on, Switch on S1. Then the load lamp turns on, the emergency driver indicator light turns green, emergency power supply will be normally charging. Turn off Switch S1, and the load lamp turns off
  4. Emergency Simulation: Switch on, the load lamp turns on, press the switch (TEST SWITCH), then switch to emergency mode, the indicator light of the emergency driver will be extinguished. Release the switch (TEST SWITCH), then the lamp is powered by the LED driver, and the indicator light will turn on
Automatic Test Operation Instructions
  1. Before installation, set Pin open: Automatic Test
  2. Connect the wire according to the wiring diagram
  3. L, N power on, start the clock, and periodic self-test. To replace the battery, turn off the power supply, and re-time
Battery Application Notice
  • The battery should be recharged and discharged semiannually in normal use conditions
  • Do not connect to the circuit when the battery is not used, to prevent over-discharging of the battery due to self-consumption of the circuit board
  • Please keep the battery away from the heat source when installing and using it, and only allow it in a certain working temperature range
  • The battery should be stored in a cool and dry environment
  • After a long time of storage, the battery is cycled every 12 months as required
  • AC power is off, and the clock lasts for 7 days. Power on and re-time. To replace the battery, turn off the power supply, and re-time
