Mini PIR Motion Sensor For Highbay, 12m Max mounting height, Remote Control Available MC079D IR DI

Name: Mini PIR Motion Sensor For Highbay 12m Max mounting height Remote Control Available MC079D IR DI
Brand: Merrytek
Price: 1 USD

Quality Mini PIR Motion Sensor For Highbay, 12m Max mounting height, Remote Control Available MC079D IR DI for sale

IP Rating : IP65

Working temperature : 0~35℃

Lifetime : 3 years warranty @Ta

Brand Name : Merrytek

Model Number : MC079D IR DI

Certification : CE UL-60730-1

Place of Origin : Shenzhen, China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10000 pcs/month

Delivery Time : 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.

Packaging Details : Clapboard + Carton(K=A)

Rated voltage : 12±1VDC

Detection range (radius) : 2-4m (indoor,sensitivity 100%,no direct sunlight to sensor)

Output signal : 0 -10VDC dimming signal

Installation height : Typical 10m (12m Max )

Detection mode : PIR detection

Contact Now

Mini PIR Motion Sensor For Highbay, 12m Max mounting height, Remote Control Available

Product Feature

Earphone interface
12 meters maximum installation height, suitable for most warehouses
Mini PIR motion detector for High Bay Lights
IP65 design
Sensor parameters can be adjusted by remote
High mounting PIR sensor

Parameters

Input
Rated voltage	12±1VDC
Operating Voltage	12V DC
Ripple voltage	<100mVp-p
Output
Output signal	√0 -10VDC dimming signal
Sensor parameters
Detection mode	PIR detection
Daylight priority	Switch ON \| 5Lux/15Lux/30Lux/50Lux \| 100Lux \| 150Lux Switch OFF \| 150Lux \| 200Lux \| 300Lux
Dimming level	10%, 20%, 30%, 50%
Detection range (radius)	2-4m (indoor,sensitivity 100%,no direct sunlight to sensor)
Installation height	Typical 10m (12m Max)
Environment
Working temperature	0~35℃
Storage temperature	-20℃~+80℃ Humidity: 10%-95% (non-condensing)
Certification standards
Certified	UL 8750(Pending)
Environmental requirements	Comply with RoHS 2.0, Reach requirements
IP Rating	IP65
Other
Wiring	Earphone interface
Installation requirements	Mount center or side of highbay
Packaging requirements	Clapboard + Carton(K=A)
Net weight	80g
Lifetime	3 years warranty @Ta

Function description

Function	Setting
ON-OFF function	Stand-by Period be set to "0s"
2-step dimming	Stand-by Period be set to "+∞"
3-step dimming	Stand-by Period be set to "10s/1min/3min/5min/10min/30min"
Daylight priority	Remote press DH Mode and Daylight Sensor be set to "5Lux/15Lux/30Lux/50Lux/100Lux/150Lux"
Daylight harvesting	N/A

Product Information

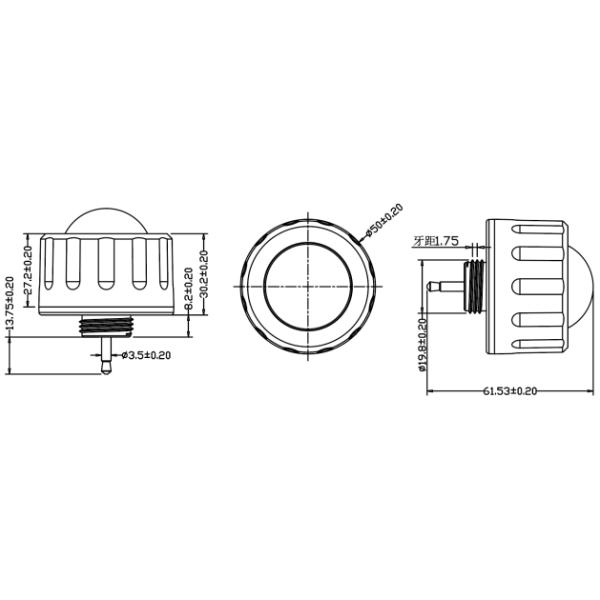

Dimension (Unit:mm)

Mini PIR Motion Sensor For Highbay, 12m Max mounting height, Remote Control Available MC079D IR DI

Function

Wiring

MC079D IR DI

Installation Instruction

Detection Range

Remote

MH12

MH10

Initialization

After switch on power, sensor will be warmed 45-60s then start to work.

Default setting

Sensitivity: 100%, Hold time: 5s, Daylight sensor: Disable, Stand by period: 0s

Application Notice

The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring and changing parameters.
PIR sensor can't penetrate any materials, please make sure no obstacle between sensor and moving people/object.
Sensor may hard to detect people if wear thick clothes in cold winter.
Heat signals will be regarded as moving signals to trigger the sensor. Avoid facing sensor to air condition or other heating source.
Sensor is for indoor use only. Outdoor sunlight could affect the detection of sensor.
Due to continuous improvement, the contents of this instruction could be changed without prior notice.
The dimming performance could be different when work with different 0-10V drivers.
The daylight threshold is measured in a sunny environment without shadow and ambient light diffuse reflection. Ambient lux level could be different in different environment, weather, climate, time-of-day and season.
Detection distance is related to height of people, mounting height, mounting angle, working environment,and etc.
Given detecting area is typical value that was measured by 165cm high testers in an indoor open environment.
This product have to use with voltage-stabilized DC power supply whose input voltage is stable and ripple factor is low(ripple factor is lower than 100mV; load current is greater than 25mA).
When installing in new environment, please install and test at least 5pcs product firstly before mass installation.
