Transparent Shell PWM Dimmable Tri-proof Light Sensor for Parking Lot

Product Features

12V DC input with 0-10V dimming signal or PWM dimming signal output
Optional three-step and two-step dimming with adjustable detection area
Patented antithetical dipoles antenna design with Adaptive Algorithm
Eliminates false triggering caused by side-lobe radiation in metal environments
Ideal for parking lots and similar applications
Remote control and DIP switch configuration for easy setup

Technical Specifications

Input Specifications
Rated Voltage	12±1Vdc
Working Current	20±3mA
Ripple Voltage	<100mVp-p
Output Specifications
Output Signal	PWM dimming signal \| 0-10VDC dimming signal
Daylight Sensor
Daylight Priority ON	5Lux/15Lux/30Lux/50Lux \| 100Lux \| 150Lux
Daylight Priority OFF	150Lux \| 200Lux \| 300Lux
Sensor Parameters
Transmitting Power	1mW Max.
Detection Area (Radius)	Ceiling mounting 3m: r≥4m@0.3m/s, r≥2.5m@1m/s Wall mounting: r≥5m@0.3m/s, r≥3m@1m/s
Mounting Height	3m (6m Max)
Environmental Specifications
Working Temperature	-25~60℃
Storage Temperature	-40~80℃
Humidity	≤85% non-condensing
Certifications & Standards
Certified	CE
Environment Requirements	RoHS 2.0, Reach
IP Rating	IP20
Other Specifications
Wiring	3pin 2.0mm terminal
Installation	Built-in
Package	Clapboard + Carton(K=A)
Lifetime	5 years warranty

Model Variations

Model No.	MC087D 99 1
Set mode	Top dip \| Bottom dip \| Top dip \| Bottom dip
Mounting structure	Clasp structure \| Clasp structure \| Screw installation structure \| Screw installation structure
Output Signal	PWM dimming signal \| PWM dimming signal \| PWM dimming signal \| PWM dimming signal
Product Images

Functional Modes

Function	Configuration
ON/OFF function	Stand-by Period set to "0s"
Two-step dimming function	Stand-by Period set to "+∞", Daylight Sensor set to "Disable"
Three-step dimming function	Stand-by Period set to "1min/10min", Daylight Sensor not set to "Disable"
Daylight priority	Stand-by Period set to "+∞", Daylight Sensor set to "10Lux/30Lux/50Lux"

Product Information

Dimensions

Transparent Shell PWM Dimmable Tri-proof Light Sensor For Parking Lot, With Patented Antenna Design

Function & Wiring Diagram

Installation Guide

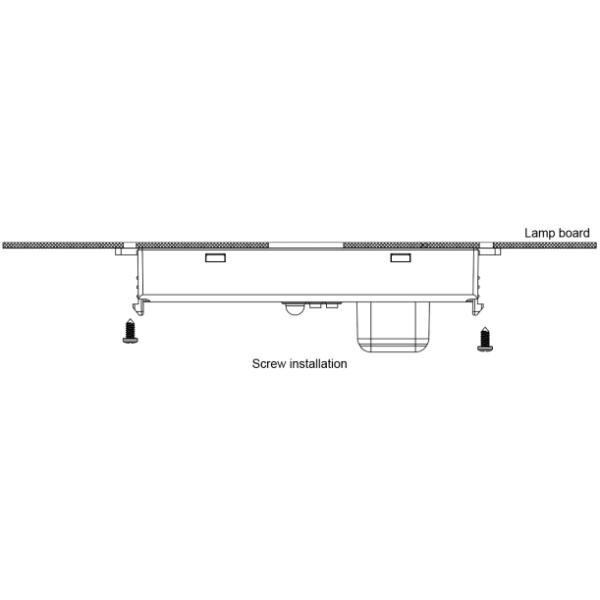

Installation Note: The distance between microwave antenna and the metal plate and lamp housing must be greater than 3.2mm, and the metal plate step should not be higher than 2mm, otherwise it will affect the operation of the microwave antenna.

DIP Switch Configuration

Function	Detection Area		Hold Time		Daylight Sensor		Stand-by Period		Stand-by Dim Level
Function	1	2	3	4	5	6	7	8	9
Ⅰ	ON	ON	100%	ON	ON	5s	ON	ON	15Lux	ON	ON	0s	ON	20%
Ⅱ	ON	-	75%	ON	-	30s	ON	-	50Lux	ON	-	1min	-	30%
Ⅲ	-	ON	50%	-	ON	3min	-	ON	150Lux	-	ON	10min
Ⅳ	-	-	25%	-	-	10min	-	-	Disable	-	-	+∞

Note: When stand-by period dial code set to +∞, it will enter daylight priority mode with half-bright shutdown.

Radiation Pattern

Initialization & Default Settings

Initialization Process

The light will be turned on at 100% brightness after power on, and will be turned off after 10 seconds. During initialization, no external motion sensing signal will be detected.

Default Settings

Sensitivity: 100%
Hold time: 5s
Daylight sensor: Disable
Stand-by period: 0s
Stand-by dim level: 20%

Application Guidelines

Important Installation Notes:

Installation should be performed by qualified electricians only
Always turn off power before installation, wiring, or changing DIP switch settings
Detection area varies with object speed, size, mounting height, angle, environment, and reflective materials
Wall mounting significantly increases detection area compared to ceiling mounting
Sensor parameters may require adjustment for different installation environments
For indoor use only - outdoor use affects waterproof performance
Maximum installation height: 6 meters (optimal: 3 meters)
Minimum distance between sensors: 3 meters
Avoid installation near moving objects, fans, DC motors, or air outlets
Microwaves cannot penetrate metal - do not install in closed metal enclosures
Use DC regulated power supply with stable output voltage and low ripple coefficient (<100mV)
Load current should be greater than 25mA
