30m diameter detection coverage Standalone PIR presence detectors with 6m mounting height

  • 1
  • 2

Brand Name : Merrytek

Model Number : MSA069S IR

Certification : CE

Place of Origin : China

MOQ : 100pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 10,000pcs per month

Delivery Time : 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.

Packaging Details : White box+ White box tags+ Clapboard+ Carton(K=A)

Input Voltage : 220-240Vac, 50/60Hz

Working current : 20mA mAX.

Power Consumption : ≤0.5W

Function : ON/OFF 30m diameter detection coverage

Available : Motion detectiong, daylight sensor

Mounting Height : 2.5-6m

Installation : Flush-mounted & Surface mounting

Cut size : Φ55mm

Contact Now

30m Diameter Detection Coverage Standalone PIR Presence Detector
Advanced standalone PIR presence detector with 30m diameter detection coverage and 6m mounting height capability.
Key Features
  • PIR motion detection technology
  • Accurate motion detection with ON/OFF output channel
  • Integrated daylight sensor detection
  • Configurable detection area, hold time, and daylight threshold via rotation switch or remote control
  • Maximum detection range: 30-36m diameter
  • 26A relay with 2000W resistive and 1200W inductive loading capacity
  • PUSH button control functionality
  • Semi-auto and auto sensing modes
  • IQ intelligent mode for automatic hold time adjustment
  • Sync control for multi-sensor coordination
  • Flush mounting and surface mounting options
Technical Specifications
Input/Output Parameters
Input voltage 220-240V AC
Rated voltage 230V AC
Working current 20mA max
Power consumption ≤0.5W @230V AC
Output signal ON/OFF
Max surge voltage 2KV(L/N, EN61000-4-5)
Max surge current 75A (50% Ipeak, twidth =500us, 230Vac full load, cold start)
Max loading 2000W resistive loading and 1200W inductive loading @230Vac
Sensor Parameters
Function PIR motion detection + daylight sensor
Detection Area Rotation switch/MH18 remote/MH10 remote setting: 100%/75%/50%/25%
Hold Time Rotation switch/MH18 remote/MH10 remote setting: Test 2s/30s/1min/5min/10min/30min
Daylight Sensor Rotation switch/MH18 remote/MH10 remote setting: 5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/Disable
Radius detection range 15-18m @25℃ based on 3m mounting height and tangential motion
Remote control Available (MH18 remote/MH10 remote)
Mounting heights 2.5-6m (typical value: 3m)
Advanced Features
Daylight Threshold Learning Mode: Automatically learns current environment daylight level and sets it as threshold.
IQ Mode: Automatically adjusts hold time based on sensor trigger frequency (10s-10min range).
Pulse Mode: Keeps on for 2s and blocks sensing for 8s when motion detected.
PUSH Button Control: Supports auto and semi-auto modes with manual override capability.
Sync Control: Enables group control of multiple sensors for coordinated lighting control.
Application Environment
Drill hole Φ55mm
Working temperature -25℃ to +50℃ (detection range varies with temperature)
Storage temperature -25℃ to +50℃, humidity ≤60% (non-condensation)
Wiring standard Wire diameter: 0.2-2.5mm², Wire stripping length: 5-8mm
Warranty 5 years (indoor application)
Certifications & Standards
Certificate Compliant with CE
Environmental requirements Compliant with RoHS
IP rating IP20
"N/A" means not available

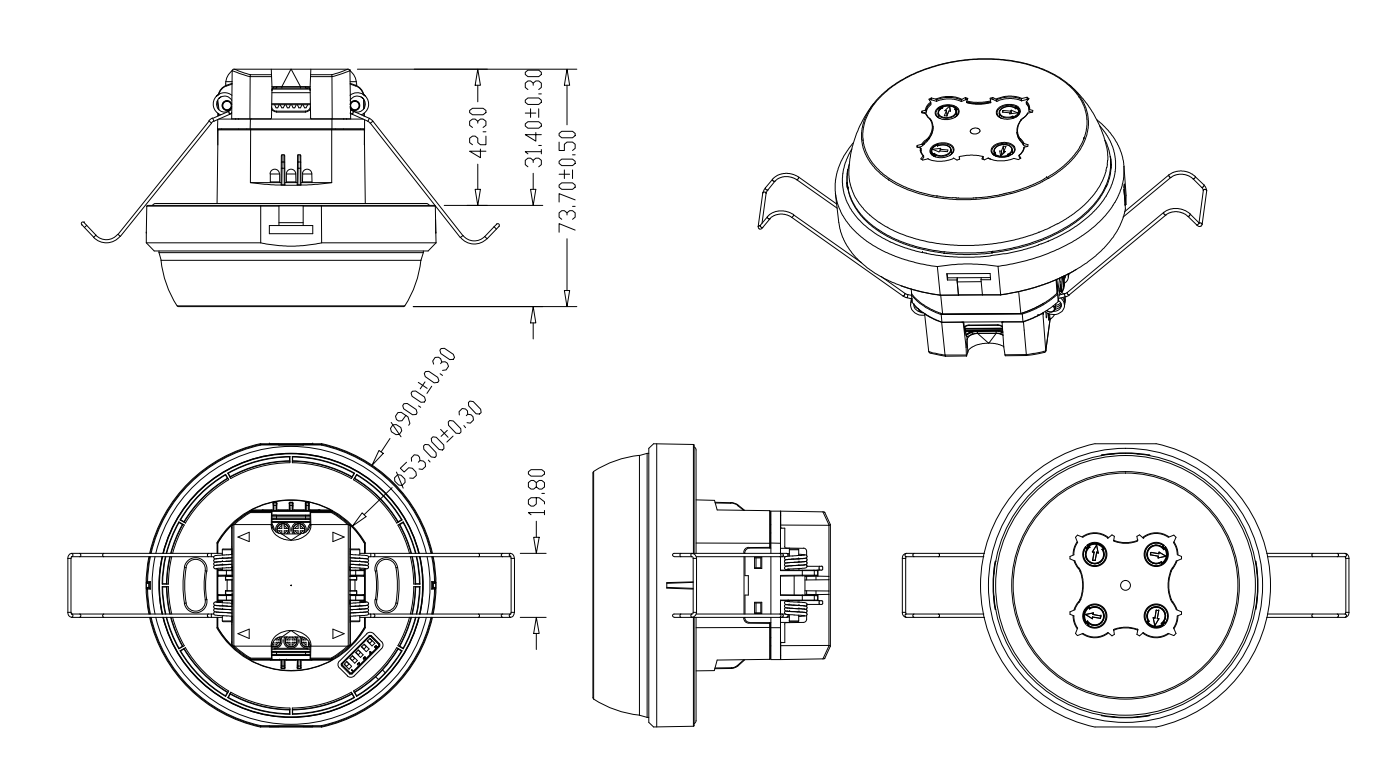

Product Dimensions
30m diameter detection coverage Standalone PIR presence detectors with 6m mounting height 30m diameter detection coverage Standalone PIR presence detectors with 6m mounting height

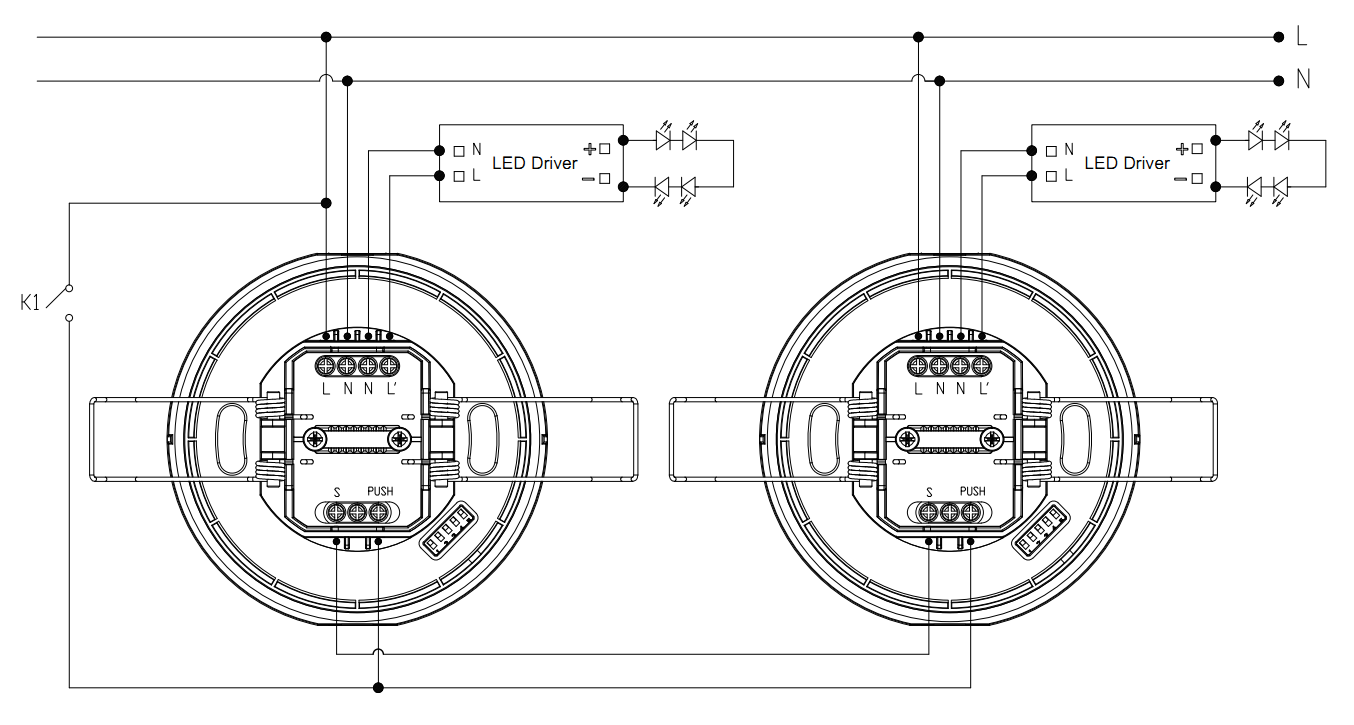

Wiring Diagram
30m diameter detection coverage Standalone PIR presence detectors with 6m mounting height

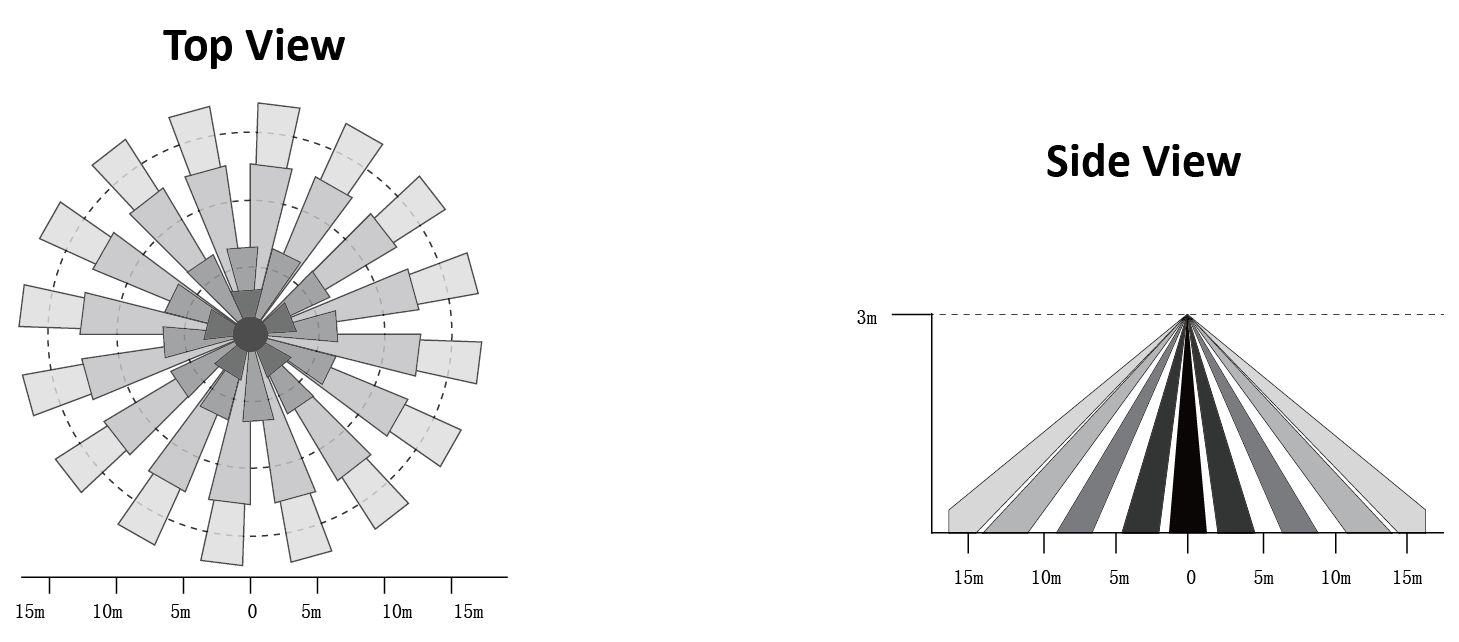

Detection Radiation Pattern
30m diameter detection coverage Standalone PIR presence detectors with 6m mounting height

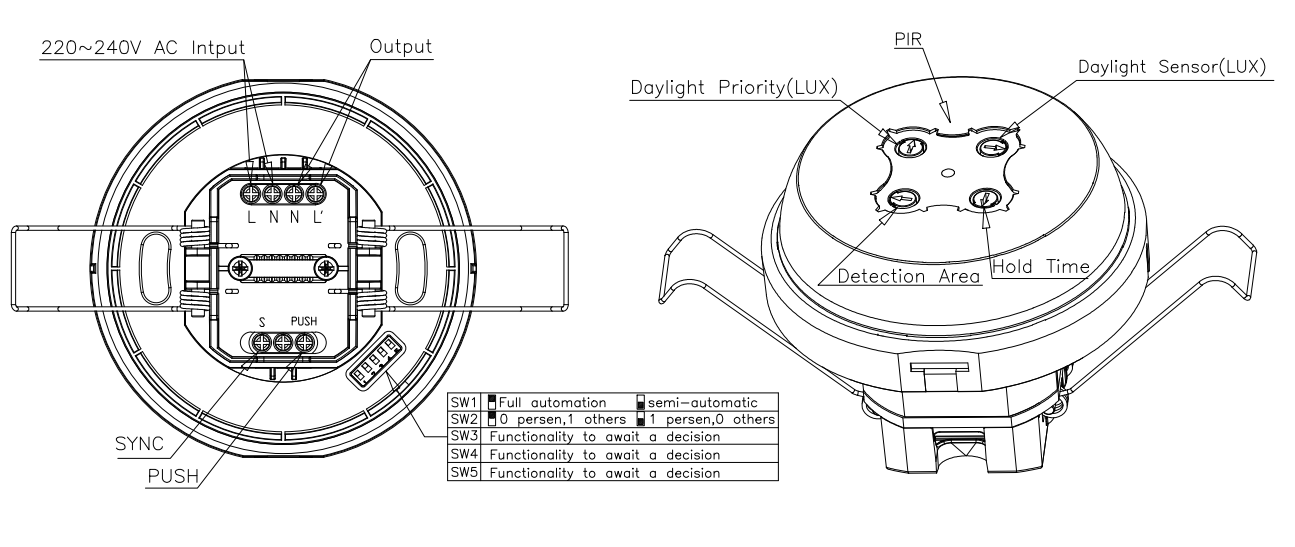

Rotation Switch Settings

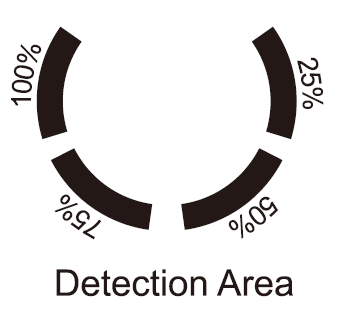

Detection Area Settings
Gear Detection Area
1 25%
2 50%
3 75%
4 100%
30m diameter detection coverage Standalone PIR presence detectors with 6m mounting height

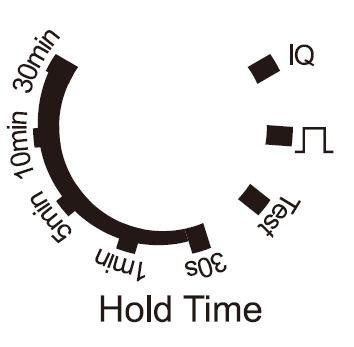

Hold Time Settings
Gear Hold Time
1 Test 2s
2 30s
3 1min
4 5min
5 10min
6 30min
7 Pulse mode
8 IQ mode
30m diameter detection coverage Standalone PIR presence detectors with 6m mounting height

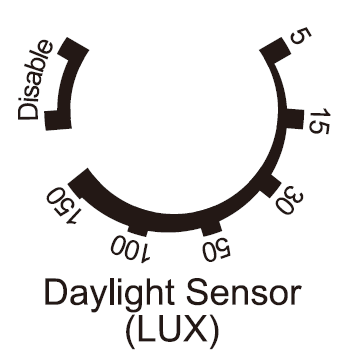

Daylight Sensor Settings
Gear Daylight Threshold
1 5lux
2 15lux
3 30lux
4 50lux
5 100lux
6 150lux
7 Disable
30m diameter detection coverage Standalone PIR presence detectors with 6m mounting height
Daylight Priority Settings
Gear Daylight Priority Gear
1 30lux ON/200lux OFF
2 50lux ON/300lux OFF
3 100lux ON/400lux OFF
4 150lux ON/500lux OFF
5 Disable
30m diameter detection coverage Standalone PIR presence detectors with 6m mounting height

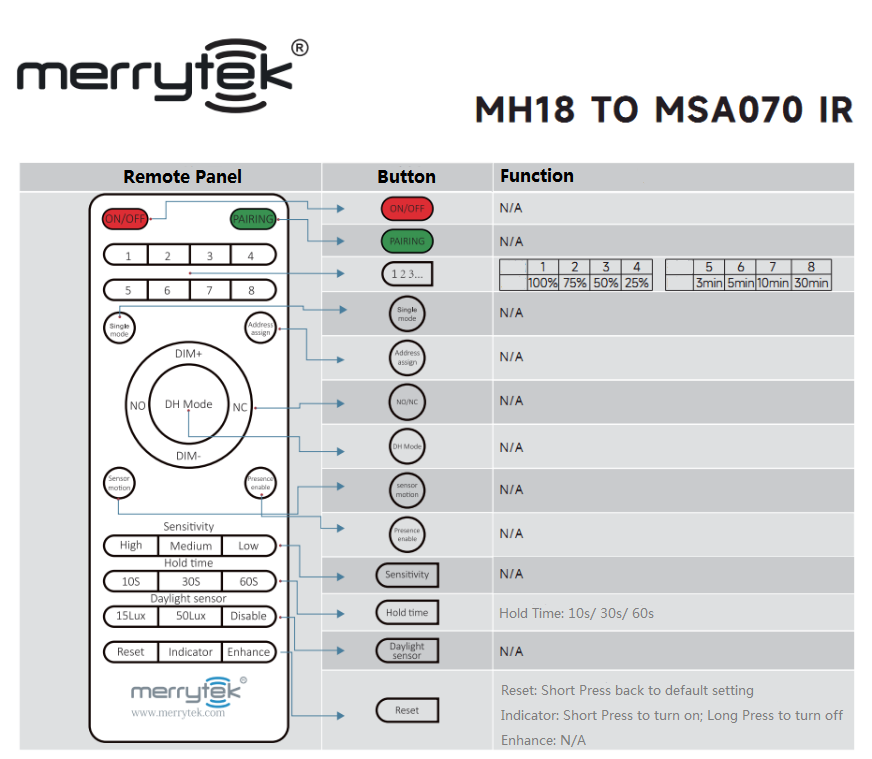

Remote Control Options
30m diameter detection coverage Standalone PIR presence detectors with 6m mounting height 30m diameter detection coverage Standalone PIR presence detectors with 6m mounting height
Installation Guidelines
  1. Installation must be performed by a professional electrician in a power-off state
  2. Typical installation height is 3m for indoor use only. Avoid installation near hot or rapidly changing temperature areas to prevent false triggers
  3. Ensure no large objects within detection area as sensor cannot detect through objects
  4. Avoid placement near strong-reflective objects, wifi routers, microwave ovens, etc., to prevent false triggers
  5. Detection area function is based on 25℃ environment temperature. Performance varies with temperature changes
  6. Detection area function is optimized for tangential movement; radial movement detection range is shorter due to PIR characteristics
Product Disclaimer
Due to the complexity of product technology and differences in application environment, it is difficult to guarantee a completely accurate or complete description, so this specification is only for user reference. We reserve the right to make changes to the product specifications without notifying the user, and do not make any commitments and guarantees in the legal sense. At the same time, our company encourages users to supplement or modify the contents of our specifications after using our products.
